Chemical laboratory fume hood lab fumehood exhaust fume cupboard
Specifications:
| External Size(W*D*H) | 1200 x 880 x 2350 mm | 1500 x 880 x 2350 mm | 1800 x 880 x 2350 mm |
| Internal Size(W*D*H) | 950 x 700 x 1150 mm | 1250 x 700 x 1150 mm | 1550 x 700 x 1150 mm |
| Work Surface Height | 850 mm | 850 mm | 850 mm |
| Exhaust air volume | 700-1300m³/h | 900-1700m³/h | 1300-2100m³/h |
| Air Velocity | 0.3 -- 0.6 m/s |
| Noise | ≤65dB(A) |
| Sash | 6mm tempered glass |
| Power Supply | AC110/220V, 50/60Hz(optional) |
| | Main Body | 1.0mm, 1.2mm thickness cold-rolled steel with epoxy resin powder coating. |
| | 5mm thickness compact panel, acid and alkali resistance, temperature resistance and anti-moisure. (Ceramic/ glass fiber/ stainless steel/ PP/ etc optional ) |
| | Standard configuration for the epoxy resin worktop(with the edge of the water) (Phenolic resin, ceramic, stainless steel/ etcoptional) |
| | Duct | PP duct system according to your piping layout |
| Blower | Centrifugal blower/ Customized |
| System | CAV/VAV system optional |
| | Water tap, removate water valve, gas tap, removate gas tap, PP cup sink opptional |
| LED lamp*1 |
| LCD control panel |
| Sockets |
| Net Weight | 300kgs | 400kgs | 500kgs |
Details of product
Product name: Fume hood
Material: All steel
Color: Grey and blue
Dimension: 1200/1500/1800*800*2350
Liner panels: 6mm compact panel, acid and alkali resistance, temperature- resistance,
anti-moisture
Guide panel: 6mm compact panel, reasonable and knock-down guide structure, Concentrated
and effective to discharge air, letting off different poisonous gas
Worktop: 12.7mm solid physiochemical board coated with epoxy resin, acid and alkali resistance,
anti-moisture and impact resistance
Window: 6mm thickness toughened glass; it can be stopped at any position by pulling.
Light: 40w anti-explosion daylight lamp, Lightness on table not lowers than 4000LUX.
Sink: pp sink
Socket: Three sets of universal sockets
Accessories: Vertical and single test cock made by brass; anti-acid and alkali resistance pp cup
Some merits of product
1 It can be used for more ten years than wooden fume hood.
2 Super ability of anti-acid and alkali resistance
3 Adopting unique side weight structure and the removable roof and side panel, easy for the
maintenance and upgrade of weight, electrical parts and pneumatic
4 The detachable guide plate is convenient for cleaning
5 The competitive price and prompt delivery are available
6 Good Ventilation System will make the staff safe in the laboratory
7 We will respect any feedback you give
8 we are specializing in the field for more than 9 years.

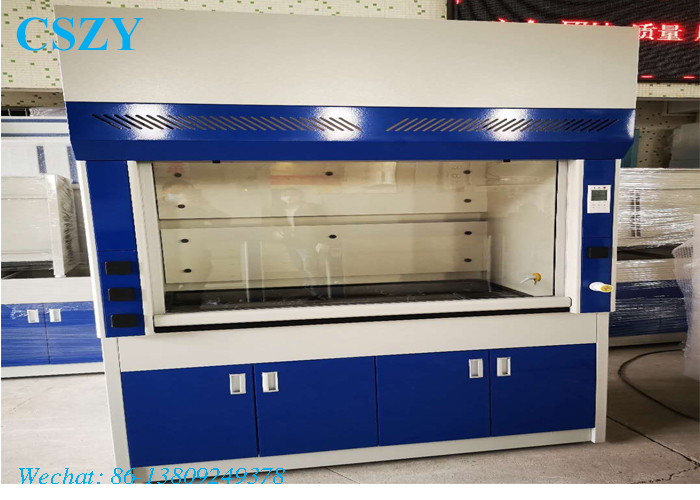

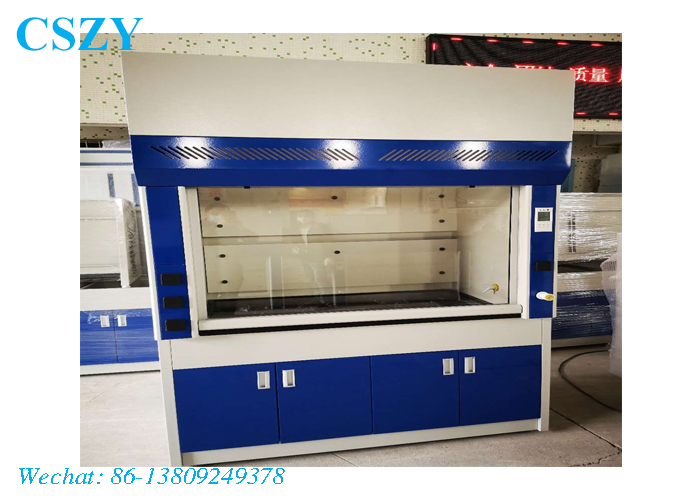

Photos of Chemical laboratory fume hood lab fumehood exhaust fume cupboard

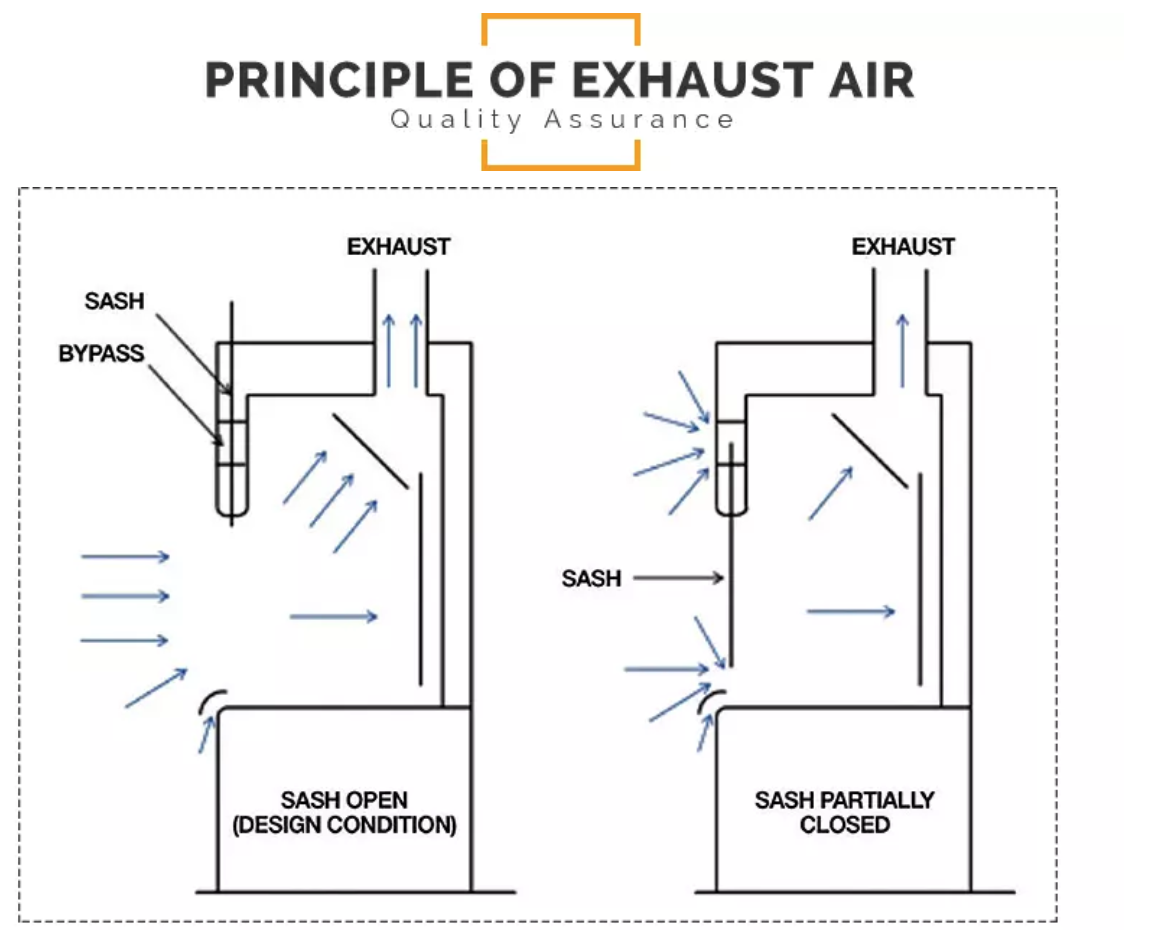

Princple of air exhaust
Guangzhou CSZY Lab System offe first-class complete laboratory design and construction
solutions, with service range covering laboratory furniture, laboratory safety VAV ventilation
system, Laboratory centralized gas supply, laboratory three wastes treatment, laboratory
purification system, SPF animal house, laboratory pure water system, professional laboratory
decoration and other professional field.
Our factory is located in Panyu District,Guangzhou city, Guangdong Province. Occupying an
area of more than 200 hectares, with standard factory buildings of 19,600 square meters,
it has set up Laboratory Steel Product Workshop, Fume Hood Production and Testing
Workshop, Three-Wastes Purification Product Workshop, Modified Epoxy Resin Product
Workshop. CSZY strictly implements ISO9001:2008 Quality management System and
ISO14001:2004 International Environment
Management System.
RAQ
Q1. Why choose us?
A1. We are the leading manufactuer in lab furniture and lab equipment, OEM & ODM
service are offered. And we have our own overseas techinican and installation team.
Q2. What’s CSZY main products?
A2. We supply laboratory furniture, fume hood, pass box, air shower, emergency shower,
clean bench,laminar flow cabinet,etc.
Q3. How about the sample of Kerric product?
A3. We could send you the samples but the freight and the sample are charged.
Q4. How about CSZY payment term?
A4. T/T & L/C &Western Union(40% deposit, the balance before shipment).
Q5. How about CSZY delivery time?
A5. Within 7-15 workdays after receiving deposit.
Q6. How about CSZY validity of quotation?
A6. Usually 30 days as the shipping freight and exchange rate can be fluctuant.
Q7. What is the shipping port?
A7. FOB to Guangzhou or Shenzhen Port,China
(also can ship according to customers’ request).
Q8. How about the package?
A8. Bubble film + Cottom +Standard export wooden case or as your request.
Q9. How to inspect the goods?
A9. Products will checked by our QC staff frist, then our proejct manager.
Client can come and check bythemselves or third party check is available.
Welcom to send your inquiry and visit our factory!
